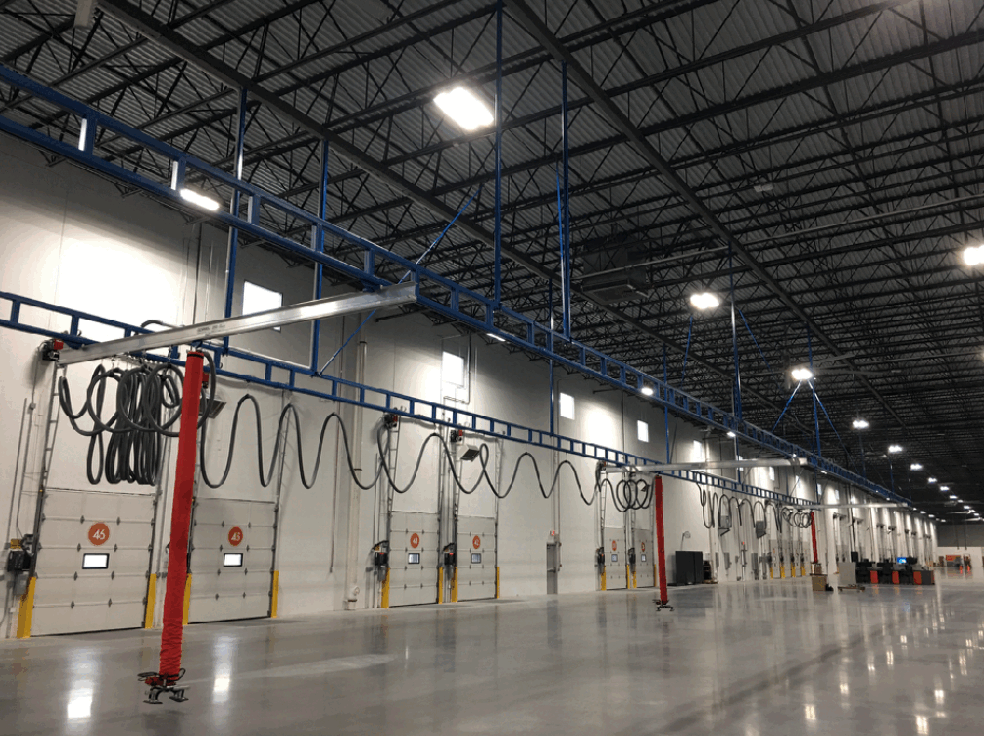

Ceiling Mount Bridge Cranes

Custom overhead installation provides lift assists for multiple dock doors and unrestricted access for trucks

This Installation (per customer specifications) includes structural steel ceiling supports (no threaded rods) painted to match the crane color and interior color scheme of the building

PVC pipe was used to feed the vacuum to each bridge for the multiple flexible hose connections. This provides ultimate, unrestricted vacuum flow to maintain maximum lifting capacity of the vacuum tube lifters.

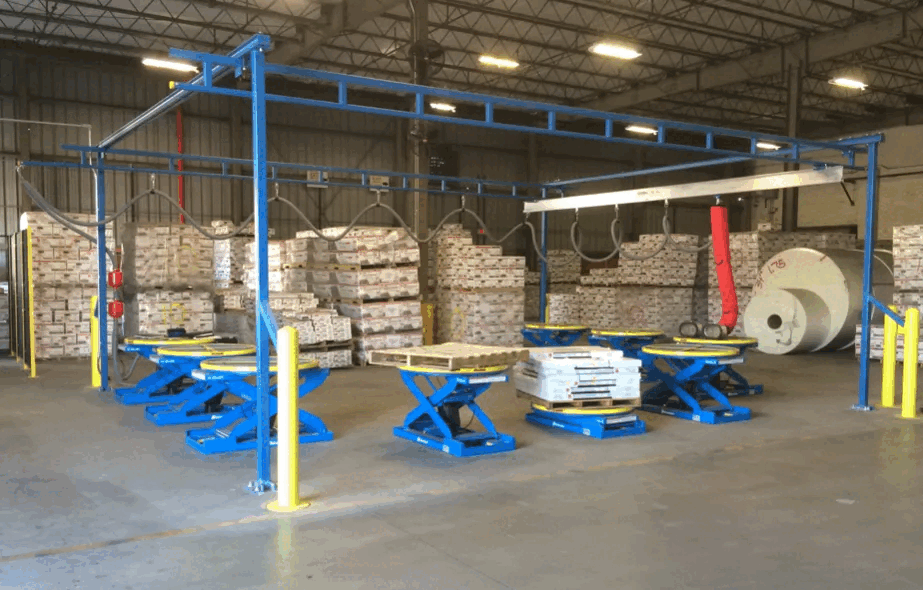

Free Standing Bridge Cranes

Workstations designed with Lift Tables, Vacuum Tube Lifters and free standing Bridge Cranes

This work cell is a unique design for the customer. Shown are the Bridge Crane, Custom Vacuum Tube Lifter and Lift/Rotate Work Positioners, (Lift Tables)

Used to assemble partial pallets of different color shingle bundles

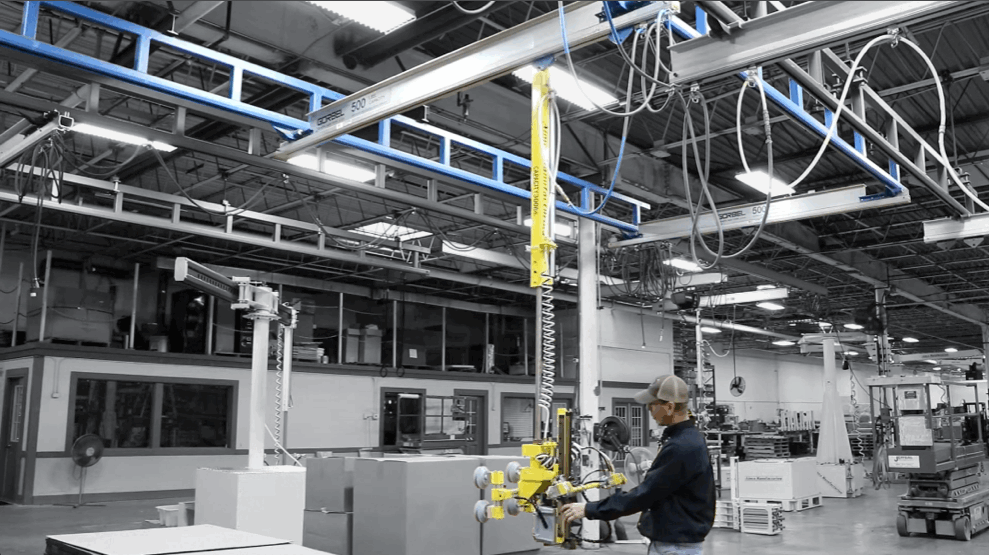

Bridge Cranes

Adaptable to fit specific applications.

Can be arranged for ceiling or floor mounting, or a combination of both to maximize floor space.

Gantry Cranes

Lightweight: Made from Aluminum (can be easily moved)

Adjustable Height: Performs in Low Headroom area and wider lift range

Collapsible for easy storage: Simple set-up – can be collapsed for storage.

*Underhung Trolley Included
